Introduction:

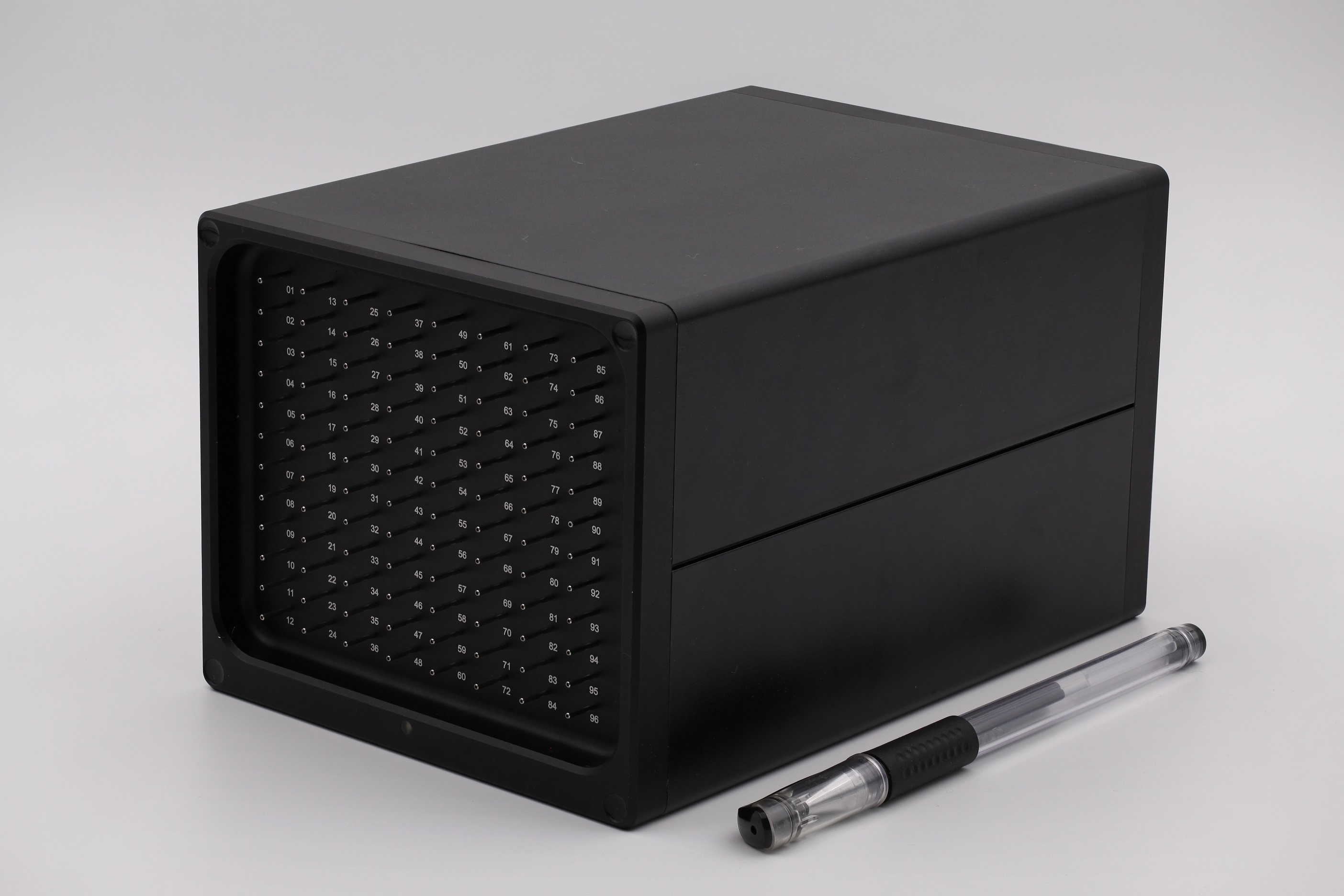

The Hanghua PSU Electronic Pressure Scanning Valve (Digital Multi-Channel Pressure Scanner) is a research instrument designed to measure the pressure distribution at multiple points on solid surfaces. This series of instruments features a wide pressure measurement range, high measurement accuracy, and fast response speed. The system integrates multiple imported pressure sensor chips and a domestically produced high-performance, high-precision data acquisition system. Under the control of Hanghua's data acquisition software, it can simultaneously measure multiple points and record and analyze the measurement data.
基本参数：
Model | PSU16 | PSU32 | PSU64 |
range and accuracy |
| ||
dimensions，mm | 213*127*48 | 200*150*100 | 200*150*100 |
number of channels | 16 | 32 | 64 |
| internal data acquisition | 16 bits, 15kHz/channel | 16 bits, 25kHz/channel | 16 bits, 25kHz/channel |
| connection | USB | USB | USB |
| operating temperatures, Deg C | -10~40 | -10~40 | -10~40 |
| Software | installation package and Labview VI, Matlab, Python code | installation package and Labview VI, Matlab, Python code | installation package and Labview VI, Matlab, Python code |
Media: Air
Lead time: 8 weeks
Applications:
The Hanghua PSU series pressure scanning valve can be applied in the following fields:
- Basic Fluid Mechanics Research
- Aerospace Engineering
- Energy and Power Engineering
- Wind Engineering
- HVAC and Indoor Environment
Current Users:
Dalian University of Technology, Sun Yat-sen University, University of Chinese Academy of Sciences, Beijing Institute of Technology, Shanghai Jiao Tong University, AVIC Aerodynamics Research Institute, Zhejiang University, Wuhan University of Technology, National University of Defense Technology, Taiyuan University of Technology, Harbin Institute of Technology (Shenzhen), China Aerospace Aerodynamics Research Institute
